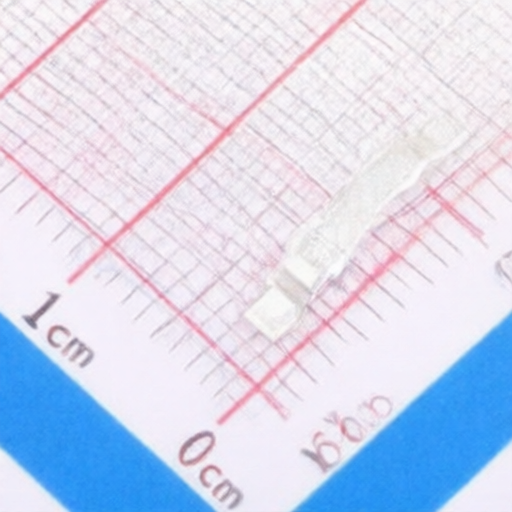

Low Profile SMT Printed Circuit Board Jumpers Keystone 5104TR for Zero Ohm High Current Applications

Description : SMD-2P Shunts, Jumpers RoHS

Mfr. Part # : 5104TR

Package : SMD-2P

Model Number : 5104TR

Contact Now

SMT Printed Circuit Board Jumpers

Designed to link circuit board traces in applications where thru hole jumpers are not possible. These low profile, space-saving SMT jumpers offer a minimal PCB footprint and are available in various spacings and materials. The "True" Zero Ohm High Current SMT Jumpers are specifically designed to replace zero ohm resistors without altering existing board designs or layouts, making them ideal as direct replacements. THM Jumpers feature a unique wave leg design for secure retention during wave soldering and can also serve as test point locations or be used with micro-jacks.

Product Attributes

Brand: Keyelco
Certifications: RoHS COMPLIANT, ISO 9001 CERTIFIED
Origin: Astoria, NY

Technical Specifications

Category	Cat. No.	Material	Spacing	Dimensions (A)	Power Rating	Current	Connection Temp.	Tape & Reel Spec's	Pieces per Reel
SMT Jumpers	5025	Phospher Bronze, Silver Plate	.100 [2.54]	N/A	N/A	N/A	N/A	N/A	N/A
SMT Jumpers	5026	Phospher Bronze, Silver Plate	.200 [5.1]	N/A	N/A	N/A	N/A	N/A	N/A
SMT Jumpers	1430-1	Brass, Gold Plate	N/A	.200 (5.1)	N/A	N/A	N/A	N/A	N/A
SMT Jumpers	1430-2	Brass, Gold Plate	N/A	.250 (6.4)	N/A	N/A	N/A	N/A	N/A
SMT Jumpers	1430-4	Brass, Gold Plate	N/A	.400 (10.2)	N/A	N/A	N/A	N/A	N/A
SMT Jumpers	1430-5	Brass, Gold Plate	N/A	.500 (12.7)	N/A	N/A	N/A	N/A	N/A
High Current "True" Zero Ohm SMT Jumper	N/A	Copper, Silver plate	N/A	N/A	0.5 Watts at 158F/70 C	20 Amps	221F/105 C or less	12mm Wide, 4mm Pitch	1,000 pieces per 7" reel
THM Jumpers	5100	N/A	.200-.500 SPACING	N/A	N/A	N/A	N/A	Supplied on Tape and Reel	N/A
THM Jumpers	5100TR	N/A	.200-.500 SPACING	N/A	N/A	N/A	N/A	Tape and Reel	500 pieces per reel
THM Jumpers	5102	N/A	.200-.500 SPACING	N/A	N/A	N/A	N/A	Supplied on Tape and Reel	N/A
THM Jumpers	5102TR	N/A	.200-.500 SPACING	N/A	N/A	N/A	N/A	Tape and Reel	500 pieces per reel
THM Jumpers	5104	N/A	.200-.500 SPACING	N/A	N/A	N/A	N/A	Supplied on Tape and Reel	N/A
THM Jumpers	5104TR	N/A	.200-.500 SPACING	N/A	N/A	N/A	N/A	Tape and Reel	2500 pieces per reel
THM Jumpers	5106	N/A	.200-.500 SPACING	N/A	N/A	N/A	N/A	N/A	N/A
THM Jumpers	5108	N/A	.200-.500 SPACING	N/A	N/A	N/A	N/A	N/A	N/A
THM Jumpers	5110	N/A	.200-.500 SPACING	N/A	N/A	N/A	N/A	N/A	N/A
0603 Jumper	N/A	.020 (.50) Copper, Silver Plate	N/A	N/A	0.5 Watts at 158F/70 C	20 Amps	221F/105 C or less	N/A	N/A
0805 Jumper	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
1206 Jumper	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A

2410121925_Keystone-5104TR_C7466142.pdf

Low Profile SMT Printed Circuit Board Jumpers Keystone 5104TR for Zero Ohm High Current Applications Images
