High reliability 3M 929951-00 shunt with glass filled polyester insulation and 2 amp current rating

Description : Shunts, Jumpers RoHS

Mfr. Part # : 929951-00

Model Number : 929951-00

Contact Now

Product Overview

The 3M Pak 100 Shunt, 929 Series, is designed for reliable electrical connections with a .100 pitch. It features a double wipe contact for dependable performance and an open top design for easy probing and testing. The loop hole on top of the contact facilitates easy removal during testing. Available in strips of twenty, these shunts are suitable for enhanced robotic handling. The color-coded body aids in easy recognition of plating types. This product mates with a .025 square pin.

Product Attributes

Brand: 3M
Series: Pak 100 Shunt, 929 Series
Pitch: .100
Insulation Material: Glass Filled Polyester (PBT)
Flammability: UL 94V-0
RoHS Compliant: Gold plated versions
Marking: 3M Logo
Origin: Printed in USA
Certifications: UL File No.: E68080

Technical Specifications

Specification	Value
Current Rating	2 A
Insulation Resistance	> 5 10⁹ at 500 VDC
Withstanding Voltage	1500 Vrms at Sea Level
Temperature Rating	-55C to +105C
Contact Material	Copper Alloy
Packaging	Strips of twenty (breakable)
Mating Pin Type	.025 Square Pin
Dimensions (Overall)	3.9 [99.0] (Length) x .24 [6.0] (Width) x .14 Ref [3.6] (Height)
Ordering Information - Color / Plating	1 - 00 RED / 75 [1.90 m] tin 2 - 10 BLUE / 75 [1.90 m] Nickel underplate, 10 [0.25 m] GOLD in the wipe area. 3 - 30 GRAY / 75 [1.90 m] Nickel underplate, 30 [0.76 m] GOLD in the wipe area.
Part Number Base	92995X-XX

2411272317_3M-929951-00_C6725183.pdf

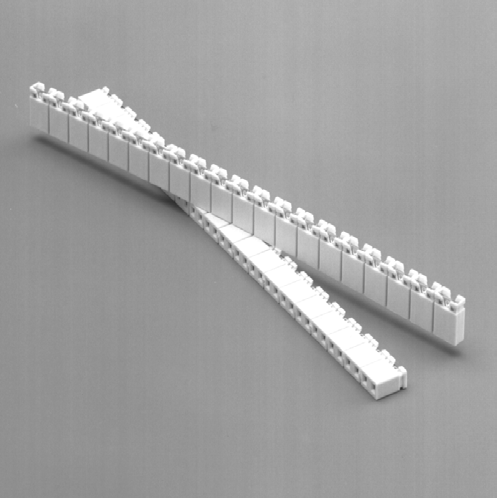

High reliability 3M 929951-00 shunt with glass filled polyester insulation and 2 amp current rating Images
