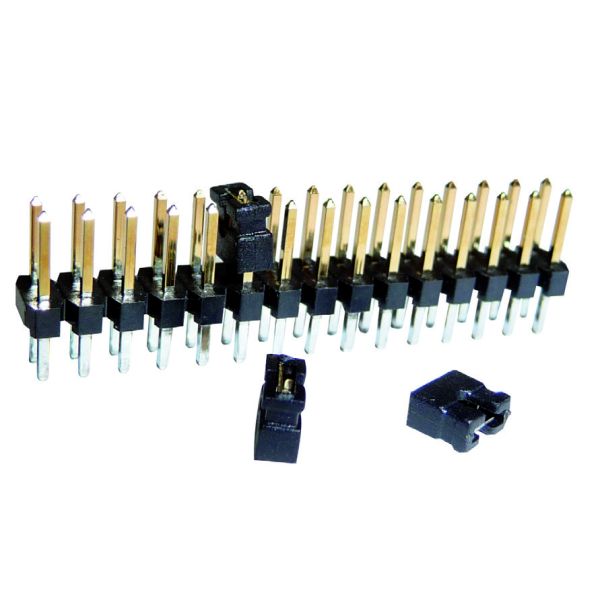

High Insulation Resistance 3M 959102-0000-DA 2 mm Shunt Open Top Contact Electrical Connector Component

Description : Shunts, Jumpers RoHS

Mfr. Part # : 959102-0000-DA

Model Number : 959102-0000-DA

Contact Now

Product Overview

The 3M Shunt 2 mm 959 Series is designed for easy probing and testing with its open top contact. This RoHS compliant product offers reliable electrical performance with a current rating of 1 A and an insulation resistance of > 5 x 10⁸ Ohm at 100 VDC. It operates within a temperature range of -40 C to +105 C.

Product Attributes

Brand: 3M
Series: 3M Shunt 2 mm 959 Series
Contact Material: Copper Alloy
Insulation Material: PBT Thermoplastic
Color: Black
Flammability: UL 94V-0
RoHS Compliant: Yes (RIA E1 & C1 apply)
UL File Number: E68080
Status: DISCONTINUED

Technical Specifications

Specification	Value
Pitch	2 mm
Contact Type	Open top
Current Rating	1 A
Insulation Resistance	> 5 x 10⁸ Ohm at 100 VDC
Withstanding Voltage	1000 VDC
Transition Resistance	≤ 20 mOhm
Temperature Range	-40 C to +105 C
Underplating (Nickel)	1.252.5 m [50-100 ]
Wiping Area Plating	Flash Gold
Plastic Style	0 = Open Top, 3.5 mm

Ordering Information

Model: 959102 0000 DA

Rows: 1 = 1 Row

Dimensional Tolerances:

Nominal Size	Linear Dim +/-	Radii +/-
0.53 mm	0.1 mm	0.2 mm
36 mm	0.1 mm	0.5 mm
630 mm	0.2 mm	1 mm
30120 mm	0.3 mm	1 mm

Note: Tolerances Unless Noted.

2411272328_3M-959102-0000-DA_C19309422.pdf
