Durable connector hanxia HX TYPE-C 6P L7.8 rated 5V 3A current with gold plated terminals and stainless steel shell

Number of Ports : 1

Supplementary Features : -

Number of Contacts : 6P

Mounting Type : 卧贴

Center Height : 1.68mm

Current Rating : 3A

Voltage Rating : 5V

Detection color : 黑色

Operating Temperature : -30℃~+80℃

Connector Type : Type-C

Gender : 母

Connect-Disconnect Life : 5千次

Description : USB-C (USB TYPE-C) Receptacle Connector 6 Position Surface Mount, Right Angle

Mfr. Part # : HX TYPE-C 6P L7.8

Package : SMD

Model Number : HX TYPE-C 6P L7.8

Contact Now

Product Overview

This document outlines the specifications for the HX TYPE-C 6P L7.8 connector from Shenzhen Hanxia Electronics Co., Ltd. It details the electrical, mechanical, material, and temperature range characteristics of the product.

Product Attributes

Brand: HX
Origin: Shenzhen Hanxia Electronics Co., Ltd.
Color: Not specified
Certifications: Not specified

Technical Specifications

Category	Specification	Details
Electrical Characteristics	Rated Voltage	5V DC
	Rated Current	3A (VBUS pin), 1.25A (GND pin), 0.25A (other pins)
	Contact Resistance	40m Max (measured at 20mV, 100mA)
	Insulation Resistance	100M Min
	Withstand Voltage	100V AC
Mechanical Performance	Insertion Force	0.5-2.0Kg
	Withdrawal Force	0.6-2.0Kg
	Durability	5000 Cycles
Materials	Housing	LCP UL94 V-0
	Terminal	C2680, T=0.2mm; Nickel base, Gold plated
	Shell	Stainless steel 201-H, Nickel plated surface
Temperature Range	Operating Temperature	-30 to +80

2509031538_hanxia-HX-TYPE-C-6P-L7-8_C25168800.pdf

Wholesale Durable connector hanxia HX TYPE-C 6P L7.8 rated 5V 3A current with gold plated terminals and stainless steel shell from china suppliers

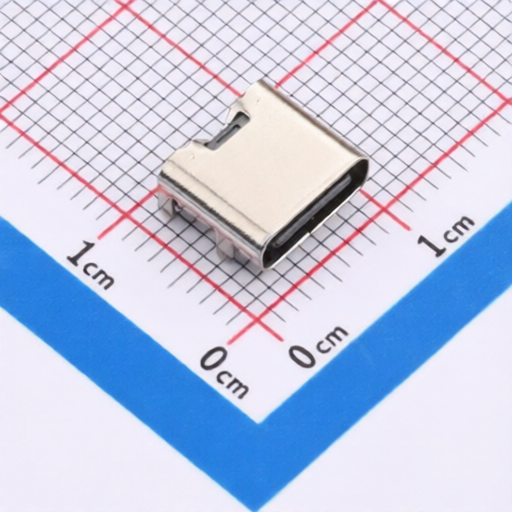

Durable connector hanxia HX TYPE-C 6P L7.8 rated 5V 3A current with gold plated terminals and stainless steel shell Images
