Durable Insulation Displacement Connector JST 15KR-6H-P Featuring Tin Plated Phosphor Bronze Contacts

Color : 灰色

Contact Plating : 锡

Number of Rows : 1

Pitch : 2mm

Description : Connector Through Hole 2mm

Mfr. Part # : 15KR-6H-P

Package : P=2mm

Model Number : 15KR-6H-P

Contact Now

Product Overview

The KR connector is a 2.0mm pitch, disconnectable insulation displacement connector designed for compact electronic equipment. It features a low mounting height of 6.9 mm and a thin profile of 4.8 mm (top entry type), making it ideal for space-constrained applications. The connector is suitable for a wide range of electronic equipment, including VCRs, video cameras, car stereo systems, and communication equipment. Key features include a folded beam double-leaf contact construction, twin U-slot insulation displacement section, strain relief, and interchangeability with PH crimp style connectors, CR, and KRD insulation displacement connectors.

Product Attributes

Brand: JST
Product Name: KR CONNECTOR
Pitch: 2.0mm
Type: Disconnectable Insulation Displacement Connectors
Certifications: Standards Recognized E60389, Certified LR20812
RoHS Compliance: Compliant with RoHS
Contact Material: Phosphor bronze, tin-plated (reow treatment)
Housing Material: PA 66, UL94V-0 (gray) for 2-12 circuits; Glass-lled PA 66, UL94V-0 (gray) for 13-16 circuits
Available Colors (Socket): Normal color: Gray (H); Others: Black (K), Blue (E), Red (R)

Technical Specifications

No. of Circuits	Model No. (Socket)	Dimensions (mm) - L	Dimensions (mm) - W	Q'ty/ box
2	02KR-6H-P	2.0	6.0	2,000
3	03KR-6H-P	4.0	8.0	2,000
4	04KR-6H-P	6.0	10.0	2,000
5	05KR-6H-P	8.0	12.0	2,000
6	06KR-6H-P	10.0	14.0	2,000
7	07KR-6H-P	12.0	16.0	1,000
8	08KR-6H-P	14.0	18.0	1,000
9	09KR-6H-P	16.0	20.0	1,000
10	10KR-6H-P	18.0	22.0	1,000
11	11KR-6H-P	20.0	24.0	1,000
12	12KR-6H-P	22.0	26.0	1,000
13	13KR-6H-P	24.0	28.0	500
14	14KR-6H-P	26.0	30.0	500
15	15KR-6H-P	28.0	32.0	500
16	16KR-6H-P	30.0	34.0	500

Specification	Value
Current Rating	1.0 A AC, DC (AWG #26)
Voltage Rating	100 V AC, DC
Temperature Range	-25 to +85 (including temperature rise in applying electrical current)
Contact Resistance	Initial value/ 10 m max.; After environmental tests/ 20 m max.
Insulation Resistance	1,000 M min.
Withstanding Voltage	800 VAC/minute
Applicable Wire	UL1571, 1061 (AWG #28, #26)
Conductor (Applicable Wire)	7 strands, tin-coated
Insulation O.D. (Applicable Wire)	0.9 to 1.0 mm
Applicable Panel Thickness	0.8 to 1.6 mm

2401301319_JST-15KR-6H-P_C567330.pdf

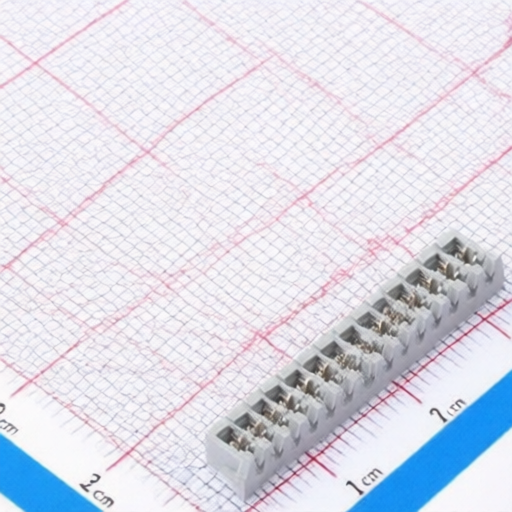

Wholesale Durable Insulation Displacement Connector JST 15KR-6H-P Featuring Tin Plated Phosphor Bronze Contacts from china suppliers
