Copper and aluminum conductor connectors 3M 31137 engineered for electrical power connections

Description : Lugs RoHS

Mfr. Part # : 31137

Model Number : 31137

Contact Now

3M Scotchlok Lugs and Connectors

Product Overview: 3M Scotchlok Lugs and Connectors are designed for splicing and terminating power cable conductors. These versatile connectors and lugs are engineered for reliability in various electrical applications, ensuring secure and efficient connections for both copper and aluminum conductors. They are suitable for use in power distribution systems up to 35 kV, offering solutions for standard, long barrel, oil seal, aerial stem, and repair splice requirements.

Product Attributes

Brand: 3M Scotchlok
Material: High-conductivity copper, High-conductivity aluminum
Plating: Electro-tin plated
Certifications: UL 486A Listed, UL 486B Listed, ANSI C119.4
RoHS Compliant: Yes (2011/65/EU)

Technical Specifications

Product Name	Series	Base Metal	Conductor Type	Barrel Style	No. of Holes	Max. Voltage	Order No.	Stranded Conductor Size	Stud Size	O.D. (approx.)	Length (approx.)	Min. Order Qty.	Case Qty.
Scotchlok Copper Lugs	30000 Series	Copper	Copper Only	Standard Barrel	One Hole	35 kV	30014	6 AWG	#10	0.29" (7,4 mm)	1.78" (45,2 mm)	50	50
Scotchlok Copper Lugs	31000 Series	Copper	Copper Only	Long Barrel	One Hole	35 kV	31036	2/0 AWG	3/8"	0.56" (14,2 mm)	2.84" (72,2 mm)	10	10
Scotchlok Aluminum Lugs	40000 Series	Aluminum	Aluminum or Copper	Standard Barrel	One Hole	35 kV	40016	6 AWG	5/16"	0.34" (8,8 mm)	2.28" (57,9 mm)	50	50
Scotchlok Copper Lugs	31100 Series	Copper	Copper Only	Long Barrel	Two Hole	35 kV	31122	4 AWG	1/2"	0.34" (8,6 mm)	4.19" (106,4 mm)	25	25
Scotchlok Aluminum Lugs	40100 Series	Aluminum	Aluminum or Copper	Standard Barrel	Two Hole	35 kV	40132	1/0 AWG	3/8"	0.640" (16,3 mm)	5.28" (134,1 mm)	10	10
Oil Seal Lugs	OS Series	Copper	Copper Only	Standard Barrel	One Hole	35 kV	OS0001	2 AWG	3/8"	0.415" (10,5 mm)	0.406" (10,3 mm)	10	10
Oil Seal Lugs	OS Series	Copper	Copper Only	Standard Barrel	Two Holes	35 kV	OS0250	250 kcmil	1/2"	0.750" (19,1 mm)	0.625" (15,8 mm)	10	10
Stem Connectors	SC Series	Aluminum Barrel, Copper Stem	Aluminum or Copper	Standard Barrel	N/A	35 kV	SC0001	2 AWG, 1 AWG	N/A	0.25" (6,4 mm)	6.00" (152,4 mm)	10	10
Parallel Clamp	CP-1	Aluminum	Aluminum or Copper	N/A	N/A	35 kV	CP-1	6 AWG (Solid) 2/0 AWG (Stranded)	N/A	N/A	N/A	10	10
Aluminum One Hole Lugs for T-Bodies	ML Series	Aluminum	Aluminum or Copper	Standard Barrel	One Hole	35 kV	ML-1AL	1 AWG	N/A	N/A	N/A	10	10
Scotchlok Copper Connectors	10000 Series	Copper	Copper Only	Standard Barrel	N/A	35 kV	10001	6 AWG	N/A	0.29" (7,4 mm)	1.75" (44,4 mm)	50	50
Scotchlok Copper Connectors	11000 Series	Copper	Copper Only	Long Barrel	N/A	35 kV	11006	2/0 AWG	N/A	0.56" (14,2 mm)	3.13" (79,4 mm)	10	10
Scotchlok Aluminum Connectors	20000 Series	Aluminum	Aluminum or Copper	Standard Barrel	N/A	35 kV	20001	6 AWG	N/A	0.34" (8,8 mm)	1.62" (41,1 mm)	50	50
Aluminum Connectors	CI Series	Aluminum	Aluminum or Copper	Standard Barrel	N/A	35 kV	CI-1	1 AWG	N/A	0.64" (16,2 mm)	2.0" (50,8 mm)	10	10
Aluminum Connectors	CI-A Series	Aluminum	Aluminum or Copper	Standard Barrel	N/A	35 kV	CI-22A	N/A	2 AWG	0.91" (23,1 mm)	N/A	10	10
Scotchlok Connectors	2000T-CU	Copper	Copper PILC	Standard Barrel	N/A	35 kV	2000T-2-CU	2 AWG	N/A	0.700" (17,8 mm)	5.32" (135,1 mm)	9	9
Scotchlok Reducer Series Connectors	2000T-CU/AL	Aluminum	Aluminum or Copper PILC	Standard Barrel	N/A	35 kV	2000T 2-1/0 CU/AL	21/0 AWG	N/A	0.640" (16,2 mm)	4.74" (120,4 mm)	9	9
Aluminum Transition Connectors	CI-T Series	Aluminum	Aluminum or Copper	Standard Barrel	N/A	35 kV	CI-T-1	4 AWG (2 AWG)	1 AWG (1/0 AWG)	0.64" (16,2 mm)	N/A	10	10
Aluminum Repair Connectors	CIR Series	Aluminum	Aluminum or Copper	N/A	N/A	35 kV	CIR-2	2 AWG	N/A	0.64" (16,2 mm)	8.0" (203,2 mm)	N/A	10
Shearbolt Connector	QCI Series	Aluminum	Copper or Aluminum	Shearbolt	N/A	35 kV	QCI 2-250	2 AWG250 kcmil	N/A	1.10" (28 mm)	4.41" (112 mm)	3	3

2411041634_3M-31137_C17685960.pdf

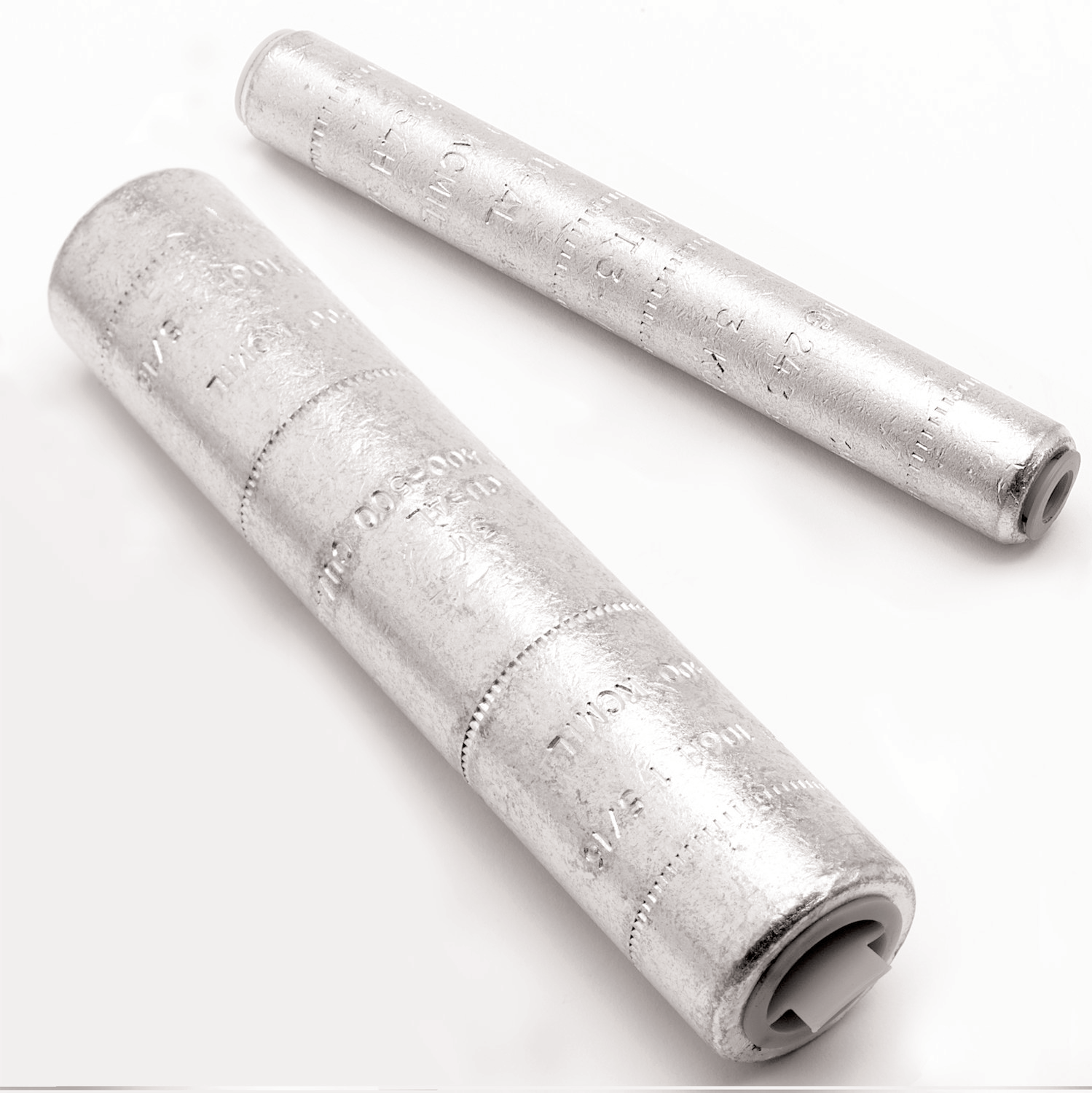

Copper and aluminum conductor connectors 3M 31137 engineered for electrical power connections Images
